Vapour barrier · wholesale
EuConX BK45 vapour barrier Sd 20 m, for the warm side.
Vapour control layer for loft floors and attic rooms, on the heated side of the insulation. Supplied to dealers, contractors and programmes with CE marking and a Declaration of Performance.
- Sd value
- 20 m
- Mass
- 45 g/m²
- Roll
- 1.6 × 100 m
Place in the build-up
Loft floor: tight below, open on top
EuConX BK45 vapour control layer
On the slab, under the wool, on the warm side. Sd 20 m; overlaps taped, wall joints turned up.
25 cm glass wool
ODE Starflex, 2 × 12.5 cm, second layer cross-laid, λD 0.039 W/(m·K).
EuConX BD70 breathable membrane
On top of the wool, on the cold side. Sd 0.02 m; vapour escapes, dust and draughts stay out.
The order cannot be reversed: a vapour-tight sheet on top of the wool traps the vapour coming up from the rooms. The Hungarian EKR catalogue asks for at least Sd 20 m under the wool and at most Sd 0.03 m on top (Decree 18/2025 EM, annex).
From the Declaration of Performance
Technical data
Declaration of Performance (PDF)(opens in a new tab)- Role
- Vapour control layer, on the warm side of the insulation
- Sd value (TS EN ISO 12572)
- 20 m
- EKR requirement under the wool
- at least 20 m
- Mass per unit area (EN 1849-2)
- 45 g/m²
- Resistance to water penetration (TS EN 1928)
- class W1
- Tensile strength MD / CMD (EN 12311-1)
- 95 / 55 N/5 cm
- Elongation MD / CMD
- 70 / 55 %
- Resistance to tearing (TS EN 12310-1)
- 55 N
- Reaction to fire (EN 13501-1)
- E
- Roll (EN 1848-2)
- 1.6 m wide, 160 m²
- Harmonised standard
- TS EN 13859-1/-2:2014, CE
- Declaration of Performance
- DOP-BBARIYER-LW-BK45/082025-01
How we supply
Any volume, delivered across Hungary

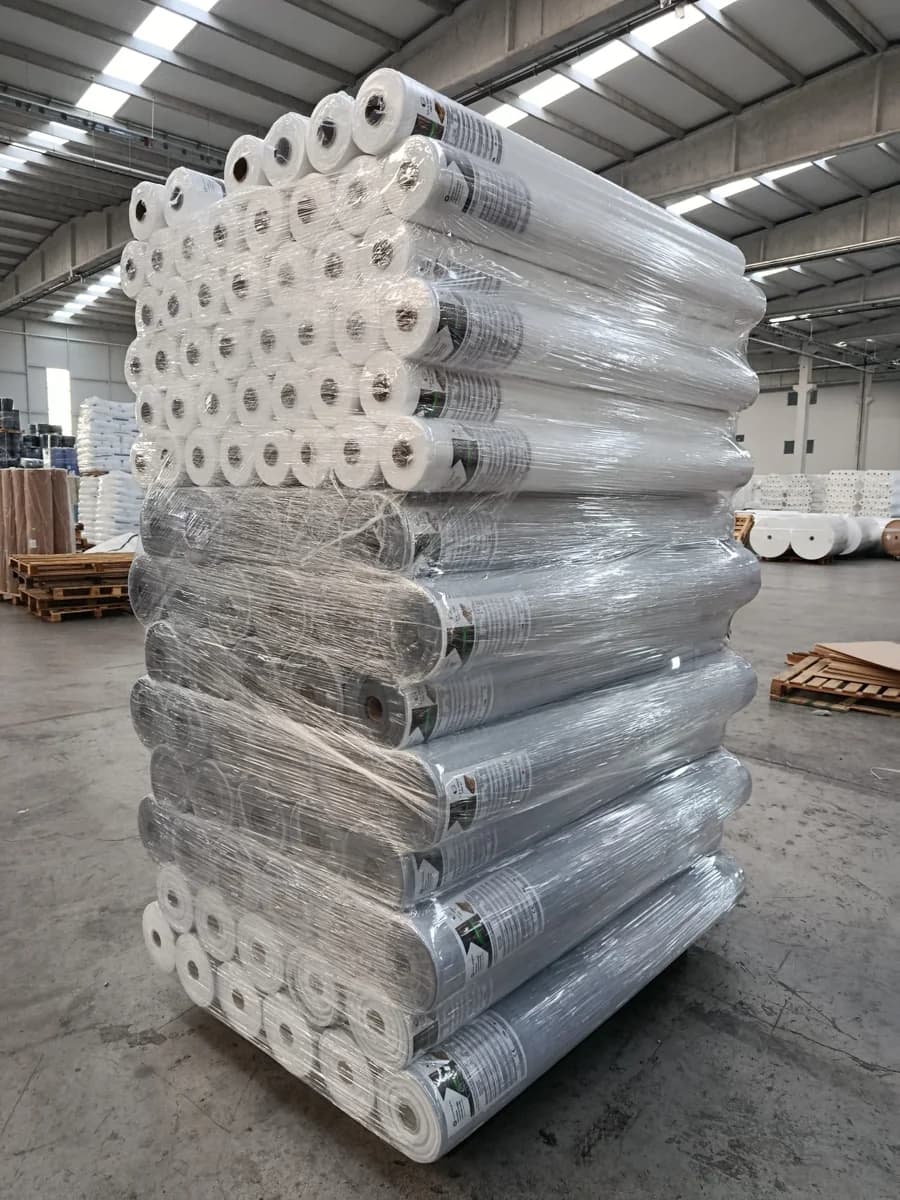

From a pallet to a truckload
For one site, a dealer's stock or a phased programme. The quote fixes the volume.
Under your own brand
Membrane and label in your brand; you approve the print before production. Private label roof membranes
Nationwide delivery
We have delivered to every county in Hungary. The delivery window is confirmed in writing.
3–5 days from Turkey
Road transit from Turkey to Hungary. When the lot is not in stock, order to site takes 1–2 weeks.
Related
Finished work, partner supply, the other membrane
- Attic floor insulation at 12 700 Ft/m²Gross price (10 000 Ft net): EuConX BK45, 25 cm glass wool, EuConX BD70. Final price after a survey; our contractor partner works nationwide.
- Wekerle+ material supplyFor contractors, renovation firms and wholesalers, ahead of the February 2027 launch.
- EuConX BD70 breathable membraneOn top of the wool and on pitched roofs: Sd 0.02 m, 70 g/m².
Quote
Send us the square metres; we reply the same working day.
Tell us the volume, any branding and the delivery address. The Declaration of Performance comes with the quote.
